Outdoor Anti Slip Galvanized Bar Grating , 30 * 3mm Metal Grid Flooring

Brand Name : Baosheng
Model Number : BS-13
Certification : ISO9001,SGS
Place of Origin : China
MOQ : 10 square meter
Supply Ability : 100 ton/week
Delivery Time : 5-9 working days
Packaging Details : Packed in seaworthy,commonly bundled by bearing bar.
Bear bar size : 25*3, 30*3,50X5mm
Thickness : 3-8mm
Item Name : Steel Grating
Grating Specification : 19-w-4, 15-w-2, 30/100, 40/50,60/100
Welding way : Electrical forged welding, hand welding
Application : Industrial platform, flooring and walkway traffic, steel structure
Contact Now

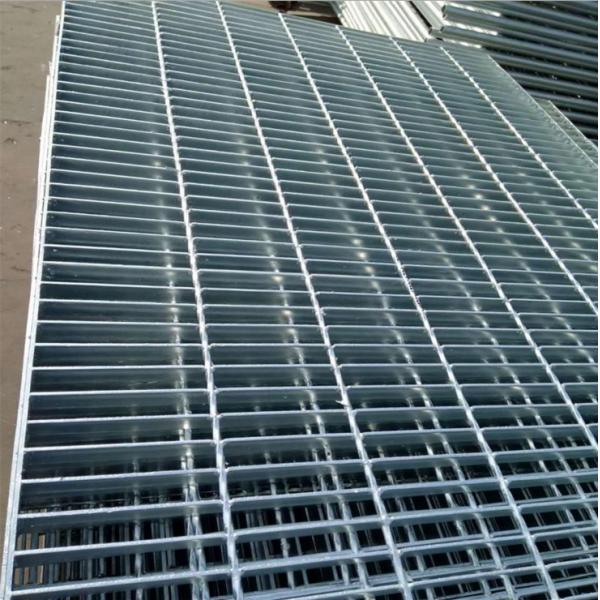

Outdoor Use Hot-dip Galvanized Anti-slip 30*3mm Steel Grating


Bearing: bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5 and 50/75x8mm
US Standards: 1x3/16'', 1 1/4x3/16'', 1 1/2x3/16'', 1x1/4'', 11/4x1/4'', 11/2x1/4'', 1x1/8'', 11/4x1/8'' and 11/2x1/8''
Bearing bar pitch: 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62 and 65mm
US standards: 19-w-4, 15-w-4, 11-w-4, 19-w-2 and 15-w-2
Cross bar: 5x5, 6x6 and 8x8mm (twisted bar or round bar)
Cross bar pitch: 40, 50, 60, 65, 76, 100, 101.6, 120 and 130mm or as customers requirements
Flat bar type plain, serrated (tooth-like), I bar (I section)
Materials: slow carbon steel (Q275/Q235/Q195, ASTM A36, A1011, A569, S275JR, SS304, SS400, UK: 43A) stainless steel and aluminum alloy
Galvanizing standards CN: GB/T13912, US: ASTM (A123), UK: BS729 steel grating standards
A. China: YB/T4001-1998
C. UK: BS4592-1987
D. Australia: AS1657-1988
E. Japan: JJS surface treatment
Black, electro galvanized (cold dip galvanized), hot-dipped galvanized, painted, powder coated or as customers requirements
And hot-dipped galvanizing is generally recommended
Any inquiries, welcome here tom LiuAnping Xinboyuan wire mesh products company limited

Grating Standardizations:

CountriesNational Standards for GratingMaterialsGalvanizing Standards
ChinaYB/T 4001.1-2007GB 700-88GB/T13912-2002
BritainBS4592-1995BS4360(43A )BS729

1Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

2Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3Twisted Cross Bar Pitch38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4Material GradeASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating
6Grating StylePlain / Smooth, Serrated /teeth, I bar, serrated I bar

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985,

Germany: DIN24537-1-2006, Japan:JIS

Payment term:

L/C at sight

T/T, 30% deposit by T/T and 70% balance by T/T before shipping.

Packing details:

normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six

pieces of M10 long bolt penetrading the gratings and screwing is suitable for loading and unloading by fork-lift and crane.

Delivery time:

we used the restocking-sell method, if the warehouse have,we may delivery it in several days,or 20-35 days after receiving the deposit. It depends on the quantity ordered!
