Steel grating drain cover
Steel Grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other propertier. The hot dipped zinc coating gives the product excellent anti-corrosion
Specification
| Bearing Bars | Cross Bars | Type 19-W-4 | Type 19-W-2 | Type 15-W-4 | Type 15-W-2 |
| 3/4 x 1/8 | 1/4 | 3.99 | 4.63 | 4.95 | 5.59 |
| 3/4 x 316 | 1/4 | 5.67 | 6.31 | 7.11 | 7.75 |
| 1 x 1/8 | 1/4 | 5.15 | 5.79 | 6.44 | 7.08 |
| 1 x 3/16 | 1/4 | 7.35 | 7.99 | 9.27 | 9.91 |
| 1-1/4 x 1/8 | 1/4 | 6.20 | 6.84 | 7.79 | 8.43 |
| 1-1/4 x 3/16 | 1/4 | 9.03 | 9.67 | 11.43 | 12.07 |
| 1-1/2 x 1/8 | 1/4 | 7.35 | 7.99 | 9.27 | 9.91 |
| 1-1/2 x 3/16 | 5/16 | 10.94 | 11.80 | 13.82 | 14.68 |
| 1-3/4 x 3/16 | 5/16 | 12.62 | 13.48 | 15.98 | 16.84 |
| 2 x 3/16 | 5/16 | 14.30 | 15.16 | 18.14 | 19.00 |
| 2-1/4 x 3/16 | 5/16 | 15.87 | 16.74 | 20.16 | 21.03 |
Features
1. Anti-corrosive, resisting to acid and alkali
2. Light weight, great load-bearing capacity, on-slip and safe, easy installation
3. Being economical of materials, being sturdy and durable, ventilation
4. Easy to clean and attractive appearance.
Application
1. Widely used in shipbuilding, harbor, oceanographic engineering, building, paper mills, cement plant, medicine, spinning and weaving.
2. Is applied in food stuff factory, transportation, municipal administration, parking lot , etc.
3. Also used by various plants such as electric power, petroleum,chemical industry.
Packaing
1. Strap Packaging: generally applicable to relatively neat grid of steel plate.
2. Pallet Packaging: Usually for export packing.
3. Screw Rod Fixation: using four screws bar through the steel grating aperture, with screw locking packaging methods.

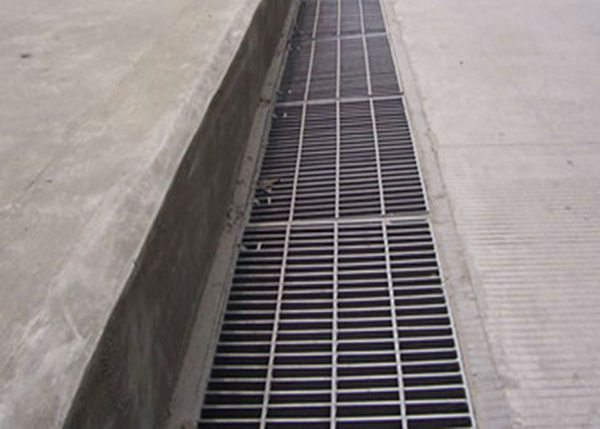

Product picture
Company Information
Gnee is a professional manufacturer in the field of steel grating,stair treads,trench cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Gnee is your right partner for purchasing & developing quality goods in China.
FAQ
1.Are you a manufacturer?
Yes, we were established in 2007 and have 18 years of industry experience in this field.
2.How much is the sample?
We provide free samples if you willing to bear express costs.
3.How to get a quotation?
Provide us with the production requirements, size, quantity and arrival port, and we will promptly quote.
4.When will the goods be delivered?
It depends on the specific order quantity, generally 15 days.
5.How to guarantee the quality of your products ?
We have ISO9001 quality system certification , and strict detection during production.
6.After-sales service?
Online technical support.
Product Tags:
|
|
Anti Slip Outdoor Drain Grate Covers , Serrated Steel Trench Covers Grates Images
|
