Serrated Steel Grid Mesh Flooring , Sliding Resistance Steel Platform Grating

Name: Serrated Steel Grid Mesh Flooring Sliding Resistance Steel Platform Grating
Brand: Gnee
Price: 1 USD

Quality Serrated Steel Grid Mesh Flooring , Sliding Resistance Steel Platform Grating wholesale

Model Number : serrated platform steel grating

Certification : ISO9001

MOQ : 100 square meters

Supply Ability : 1000t per month

Delivery Time : 3 - 7 work days

Packaging Details : Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements

Brand Name : Gnee

Product name : Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform

Bearing bar type : Serrated

Grating thickness : 20mm,25mm,30mm,40mm ,60mm etc

Bearing bar thickness : 2,3,5,10mm,etc

Cross bar thickness : 6,7,8,10mm,etc

Bearing bar pitch : 30mm,40mm ,60mm etc

Cros bar pitch : 38mm,50mm,100mm etc

Surface : galvanized,untreated,stainless steel

Contact Now

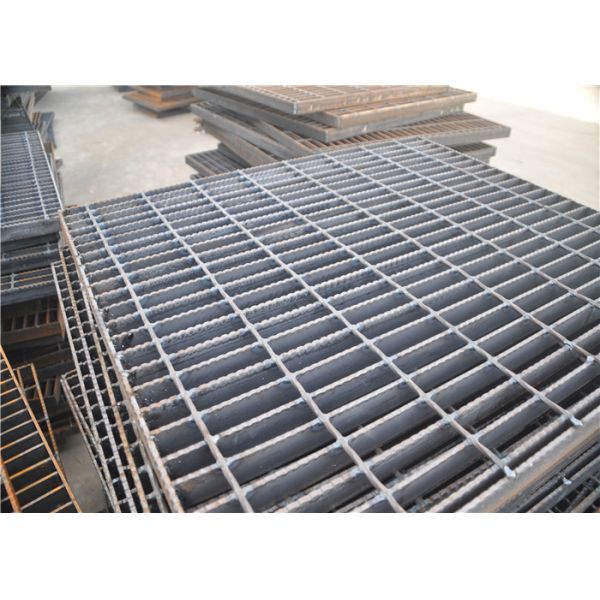

Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform

Detail description

Its bearing bar is serrated surface

For applications where extremely slippery conditions prevail,Serrated steel grating weld offers a superior grip surface to the load bearing bars.

Type	Serrated type
Standard	1.China: YB/T4001-1998; 2.USA:ANSI/NAAMM(MBG531-88) 3.UK:BS4592-1987 4.Australia:AS1657-1985; 5.Japan:JIS
Material	Q235,A36,SS304
Bearing bar	1.plain&serrated type:20x3 to 100x3mm 2.I-section type:(25,32,38,40,50)x5x3; (50,55,60,65,70,75)x7x4,etc
Surface treatment	untreated, painting or hot dip galvanizing
Grating type	1.Plain style steel grating; 2.serrated style steel grating; 3.I bar type steel grating.
Application Fields	1.steel structure platforms; 2.stair treads,sidewalks; 3.drainages; 4.well covers.
Advantages	1.Low cost for molding or tooling; 2.Advanced &standardization workshops and facilitates; 3.High-tech and high precision manufacturing equipment; 4.Strict ISO 14001:2004,ISO9001:2008 standards; 5.ROHS compliant & environment friendly products; 6.Professional technical specialists and management personnel; 7.100%in house inspection before delivery; 8.All OEM/EDM is acceptable.

Item No	Bearing bar pitch	Cross bar pitch	specification os bearing bar(width*thickness)
Item No	Bearing bar pitch	Cross bar pitch	20*3	25*3	32*3	40*3	20*5	25*5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50	G203/60/50	G253/60/50	G323/60/50	G403/60/50	G205/60/50	G255/60/50

Features

Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.

Serrated Steel Grid Mesh Flooring , Sliding Resistance Steel Platform Grating

Our advantages

1. Our company produce various specifications,models as per standards

2. Using high -quality material and advanced production technology and equipment for processing

3. Applicable to a humid climate and the harsh corrosive enviroment

4. Products has been exported to Europe,North American,the Middle East,South East

Asia,Africa,Asia,European,other countries and regions
