Heavy Duty Grating Trench Drain Cover/Steel Plate Floor Grating Non-Slip Stair Tread Grid/Drainage Ditch Cover Plate

Brand Name : GNEE

Certification : SGS

Place of Origin : China

MOQ : 10 square meter

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 100 ton/week

Delivery Time : 5-9 working days

Packaging Details : Sea-worthy packing, ie wooden or steel tray with steel strip,etc

Contact Now

Galvanized Steel Grating, is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Our galvanized coating process provides for years of corrosion resistance in acidic and high moisture environments.

Galvanized Steel Expanded Metal is a sheet product that has been slit and stretched to diamond shaped openings. Galvanized expanded metal offers savings in weight and allows free passage of light, liquid, sound and air while providing corrosion resistance in harsh environments.

Heavy Duty Grating Trench Drain Cover/Steel Plate Floor Grating Non-Slip Stair Tread Grid/Drainage Ditch Cover PlateHeavy Duty Grating Trench Drain Cover/Steel Plate Floor Grating Non-Slip Stair Tread Grid/Drainage Ditch Cover Plate

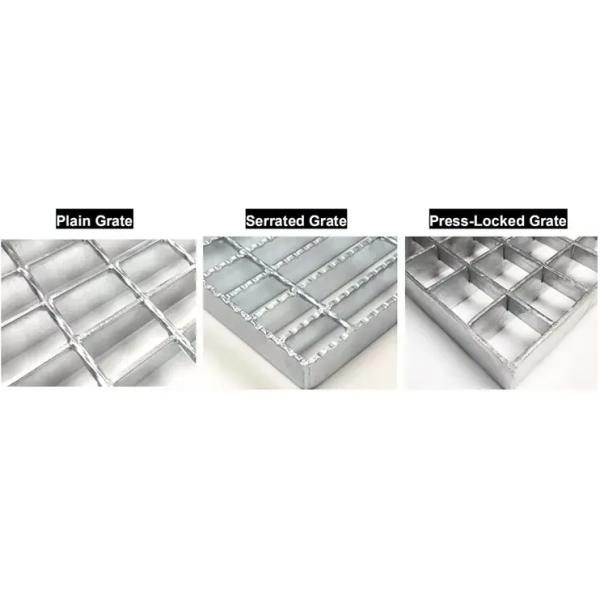

According to the different types of flat steel, the steel grillageismainly divided into the following three types,comparison of feature.

1.Plain Type
One of the most widely used grating.Availablefor flooring, sidewalk, drainage pit cover, stairtread, etc.

2.Serrated Type
Better non-skid property & safety comparing to plain grating.

3.I Bar Type
Lighter, more economical and paraticalcomparing to plain grating.

Heavy Duty Grating Trench Drain Cover/Steel Plate Floor Grating Non-Slip Stair Tread Grid/Drainage Ditch Cover Plate

GLOSSARY OF TERMS
1. Bearing Bar - Loading carrying bars made from steel strip or slit sheet or from rolled or extruded aluminum, extending in the direction of the grating span.
2. Cross Bar - The connection bars, made from steel strip, slit sheet or rolled bars or from rolled or extruded aluminum, which extend across the bearing bars, perpendicular to them. They're bent into a corrugated or sinuous pattern. Where they intersect the bearing bars, welded, forged or mechanically locked to bearing bars.
3. Bearing Bar Centers - The distance center to center of the bearing bars.
4. Cross Bar Centers - The distance center to center of the cross bars.
5. Band - A flat welded to a side or end of grating panel. Or along the line of a cutout, extending neither above nor below bearing bars.
6. Toe Plate- Also called kick plate. A flat bar attached flat against the outer edge of grating or rear edge of tread. Projecting above the top surface of grating or tread to form a lip or curb.
7. Length - Refer to span of grating.
8. Width - The overall dimension of grating panel. Measured normal to the bearing bars.
Heavy Duty Grating Trench Drain Cover/Steel Plate Floor Grating Non-Slip Stair Tread Grid/Drainage Ditch Cover Plate
