Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them, which is designed to hold heavy loads with minimal weight. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
Steel Platform Grating or Steel Grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
- Stainless Steel grating- Corrosion resistant and strong with superior spanning capabilities.
- Mild steel grating - economic and strong with superior spanning capabilities.
- Aluminium grating - lightweight alternative to mild steel grating while still achieving great spanning capabilities, also popular in architectural settings
- FRP grating - lightweight/nonconductive / non sparking. Used in environments where the physical properties are critical due to its corrosion resistant properties.
- Stair treads - Mild steel, aluminium and FRP stair tread options available
- Ball stanchions - Where edge protection / Guard railing is required we offer a variety of standard stanchion posts to meet the requirements of AS/NZS 1657
- Closure / rail bends - available to complement our ball stanchions
- Grating for vehicular loadings - Grating types suitable for various vehicular loadings
- Grate fastenings - various fixing clips for our grating product
- Ancillary items for our grating products - yellow abrasive nosings, yellow abrasive grip plates, grate mesh and grate plate products
| Bearing Bar Pitch |
Cross Bar Pitch |
Load Steel Size ( Width ×Thickness) |
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Bearing Bar |
Cross Bar Pitch |
Load Steel Size (Width ×Thickness) |
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
Product Tags:
|
|

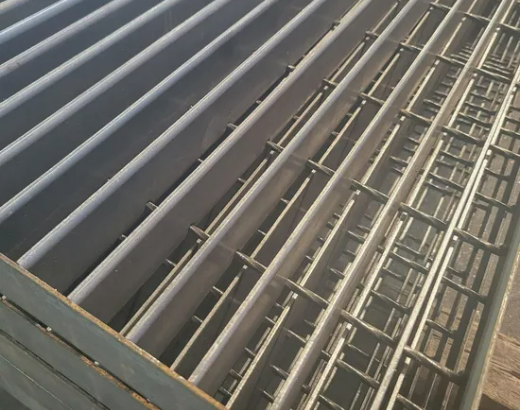

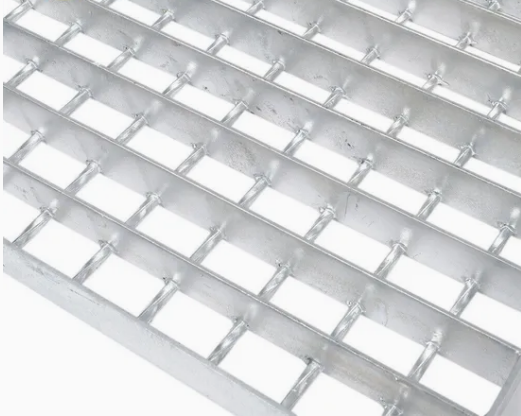

Serrated Galvanized Steel Grating for Outdoor Metal Drain Cover Images
|
